Wyposażenie stacji EME 24 GHz - DL7YC

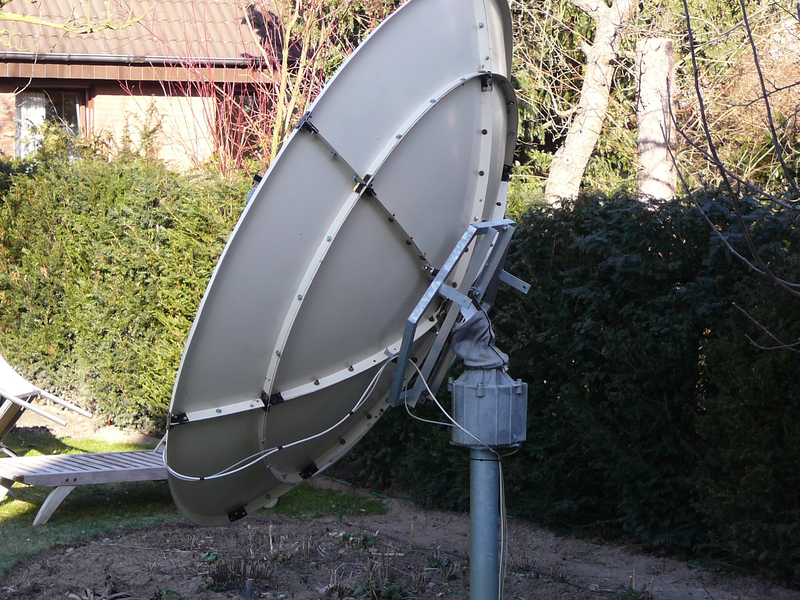

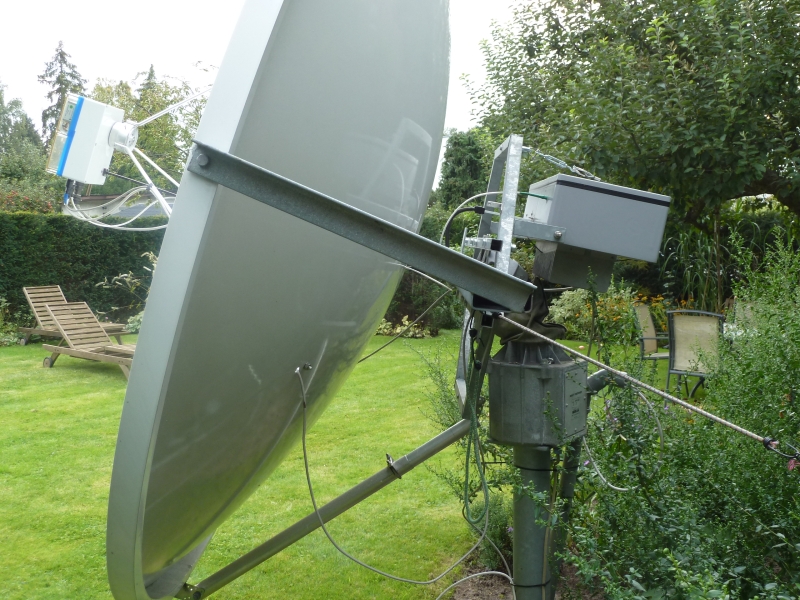

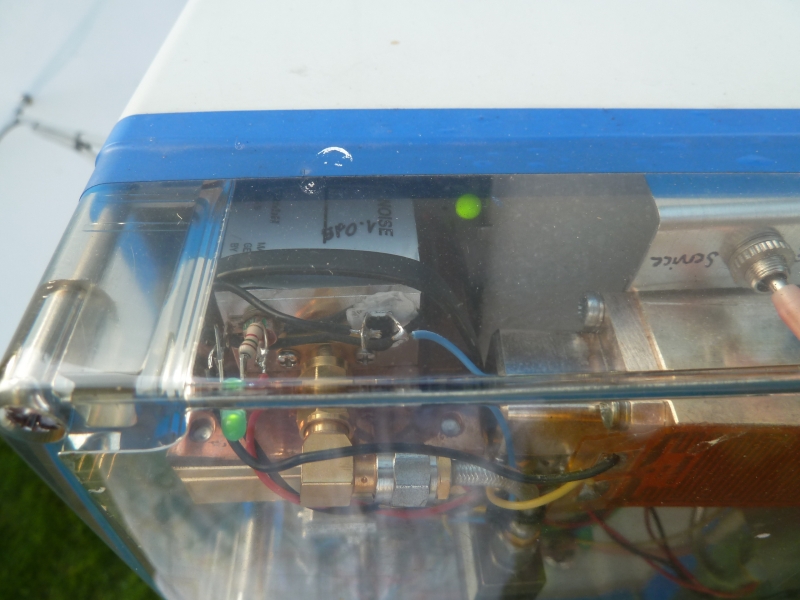

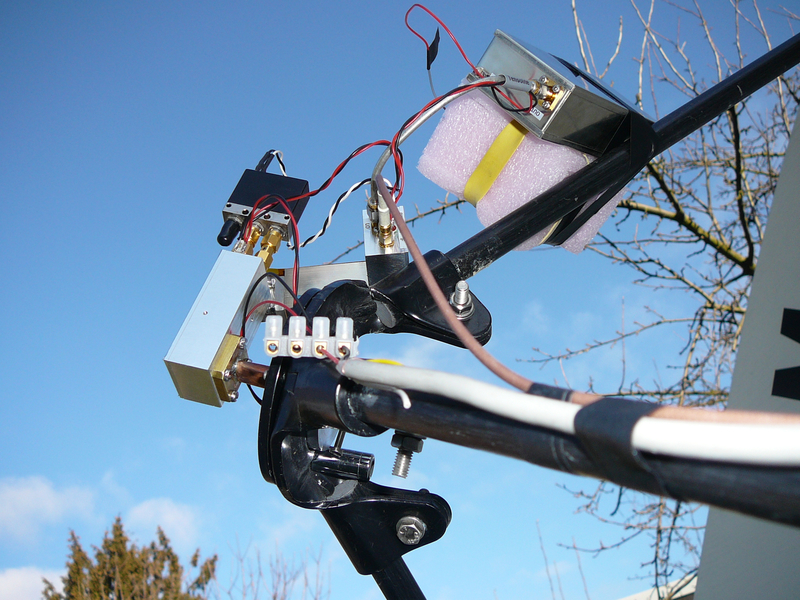

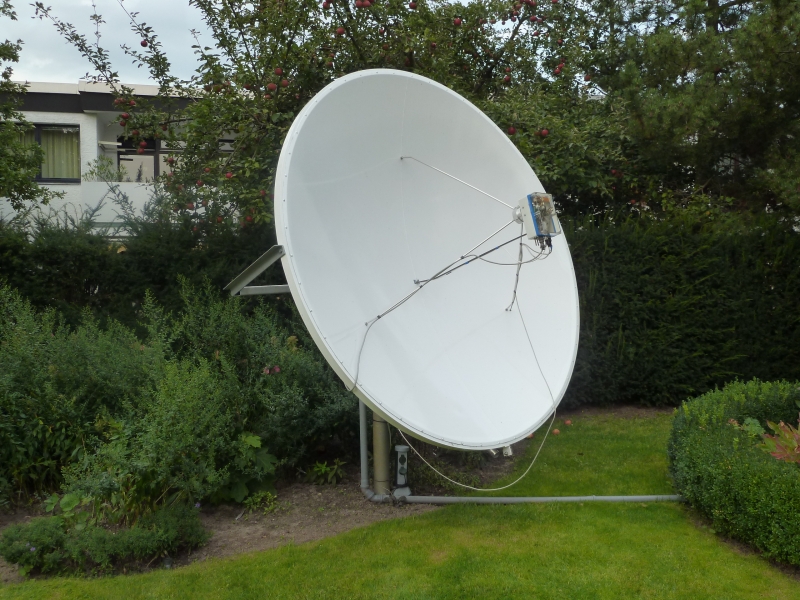

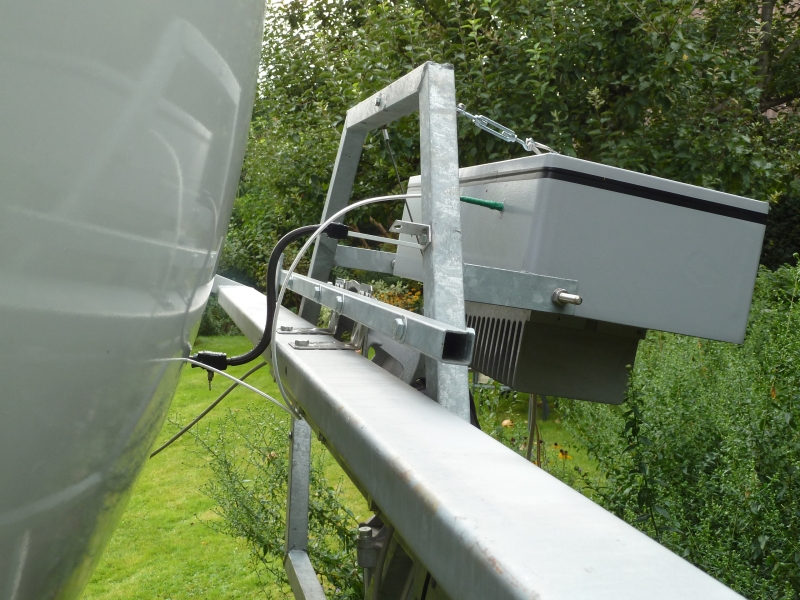

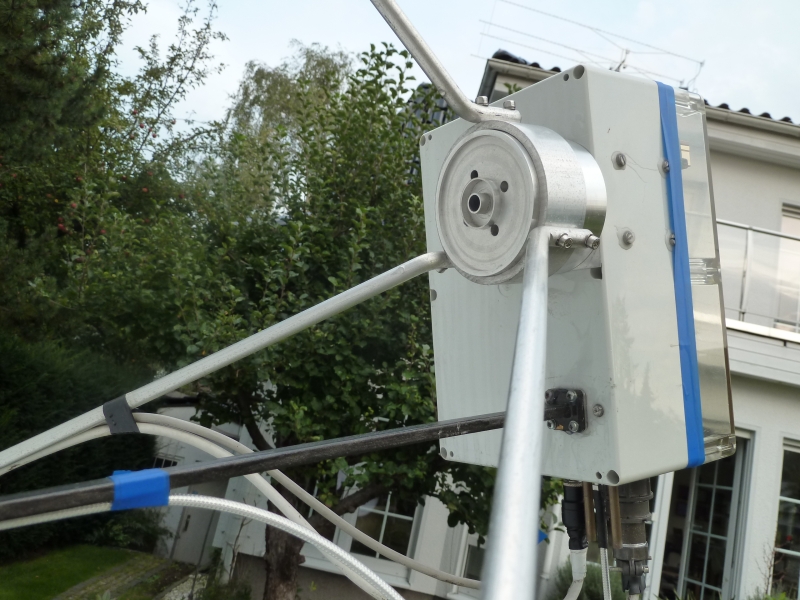

Wyposażenie stacji EME 24 GHz - DL7YC 24 GHz DL7YC 2008 24 GHz DL7YC - RX tests: feed, LNA and TRX in the dish focus 24 GHz DL7YC 2008 24 GHz DL7YC - 1.8 m dish 24 GHz DL7YC 2011 View of 2.4 m dish 24 GHz DL7YC 2011 Site view on Manfred's 24 GHz EME system 24 GHz DL7YC 2011 PA 24G (TWT with large heatsink + PSU) is placed behind the dish. White coax cable delivers driving pwr from TRX in focus, output pwr of 45W goes via 3 pieces of WG, the middle part is flexible WG of "S" shape. 24 GHz DL7YC 2011 Side view on focus compartment in plastic box (WG switch, LNA DB6NT with water cooling and DB6NT transceiver+filter and BA). 24 GHz DL7YC 2011 Closer look on LNA DB6NT with water cooling (computer processor cooler with 8deg C), NF 1.1dB inside the plastic box in the dish focus.
